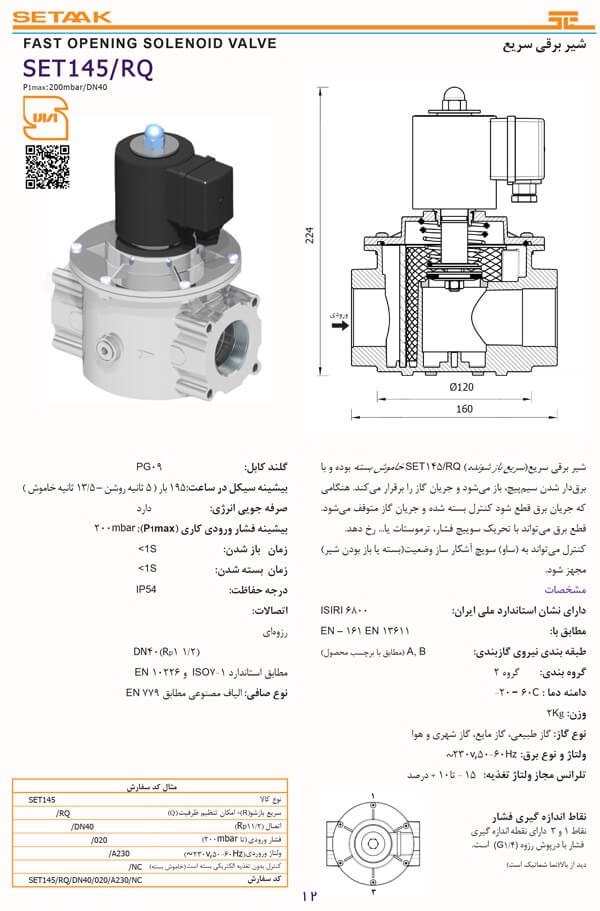

Fast Opening Solenoid Valve | SET145/RQ-DN40

Two - Capacity solenoid valve for gas

Product specifications :

The RQ145/SET solenoid valve is normally closed (NC) and opens upon energizing the coil, allowing gas flow. When the power supply is interrupted, the valve closes, stopping the gas flow. Power interruptions can occur due to the activation of a pressure switch, thermostat, or other controls. The valve can also be equipped with a Status Indicator Switch (SOV) to detect its position (open or closed).

Technical Specifications:
• Standards Compliance: UL144 and EN16129
• Temperature Range: -30°C to 60°C
• Gas Type: Liquefied Petroleum Gas (LPG), Propane, Butane
• Maximum Working Inlet Pressure: 17.5 bar (250 PSIG)
• Capacity:
50 kg/hr of propane under the following conditions:
The outlet pressure drop is 20% relative to the set outlet pressure.
The inlet pressure equals the set outlet pressure plus 20 PSIG.
