Slow Opening Solenoid Valve | SET144/SQ/DN65-DN80

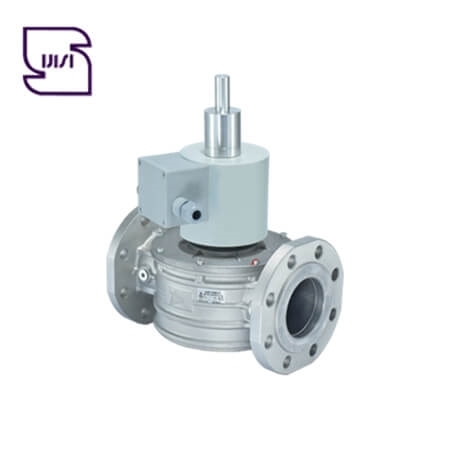

Slow Opening Solenoid Valve

Product specifications :

In accordance with the standard : EN 161 - EN 13611 (Group 2)

Working temperature : -20 up to 60°С

Gas types : Natural gas, liquefied petroleum gas, Air, Town gas

Connection : Flange DN65, DN80

Flange connections in accordance with : ISO7005-PN16

Weight (Kg) : 9.7

Inlet pressure range : Up to 360 mbar

Normally closed automatic slow opening solenoid valve opens the flow of gas when the coil is electrically powered and closes when it offs. It can be controlled by thermostats, switches, etc. In addition, you can control it by CPI switches.

Be the first to review this product

Start order request

Title	File	Size	Version	Download Data
کاتالوگ کنترل های خط گاز مشعل	gas-controls1403.pdf	42.1 KB	پاییز 1403	Download Data
کاتالوگ شیر برقی	gas-controls-solenoid-valve.pdf	1.6 MB		Download Data
راهنمای شیر برقی آرام	SET144 SQ DN65،80.pdf	613.3 KB	زمستان 1402	Download Data
