Fast Opening Solenoid Valve | SET144/RQ/DN25

Fast Opening Solenoid Valve

Product specifications :
In accordance with the standard : EN 161 - EN 13611 (Group 2)
Working temperature : -20 up to 60°С
Gas types : Natural gas, liquefied petroleum gas, Air, Town gas
Threaded connections : DN25 (Rp1)
Weight (Kg) : 0.85
Inlet pressure range : Up to 360 mbar

Normally closed automatic fast opening solenoid valve opens the flow of gas when the coil is electrically powered and closes when it offs. It can be controlled by thermostats, switches, etc.

Start order request
Sharing

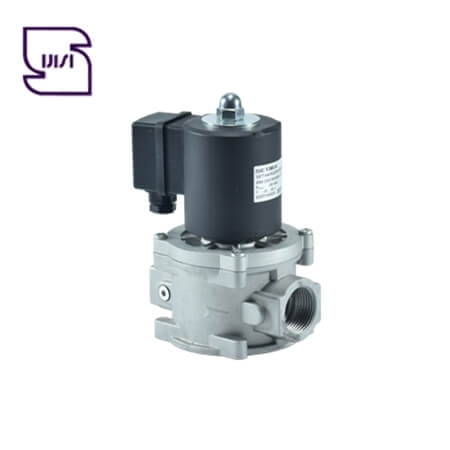

Picture of Fast Opening Solenoid Valve | SET144/RQ/DN25
Picture of Fast Opening Solenoid Valve | SET144/RQ/DN25
Title File Size Version Download Data
Gas Controls Catalog gas-controls-en-v14031108.pdf 2025
Solenoid Valve Catalog gas-controls-solenoid-valve.pdf 2024
راهنمای شیر برقی سریع SET144 RQ DN25.pdf 425 KB خرداد 1403

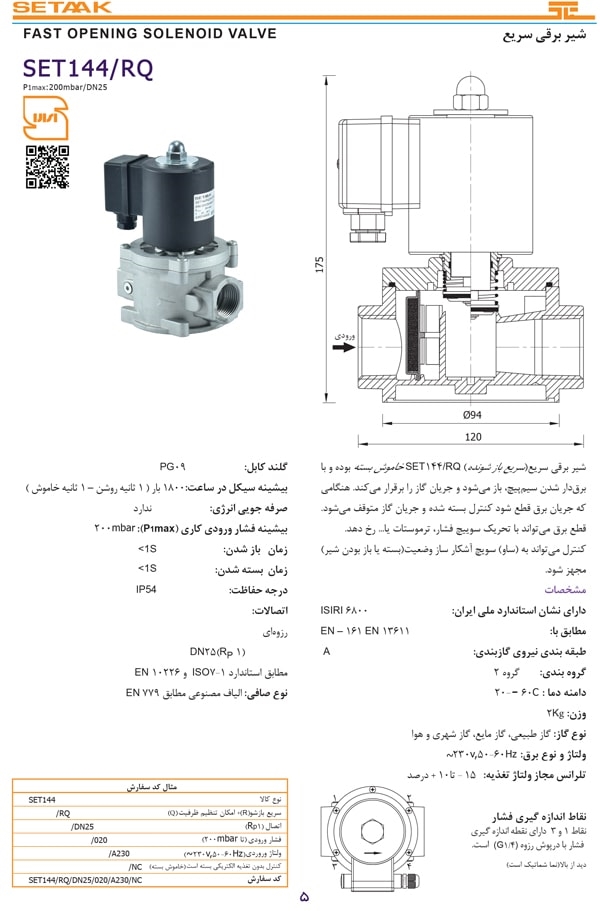

کاتالوگ SET144/RQ/DN25 200mbar SET144/RQ/DN25 200mbar.pdf 500 KB خرداد 1403
