Hydraulic Pneumatic Intensifier Cylinder Model PH

Hydraulic Pneumatic Intensifier Cylinder

Product specifications :

● For Generating Force Ten than Pnuematic Press
- Generating Substantial force by compressed air.
- Occupying the space as much as hydraulic system.
- High stroke of movement.
- Non-necessity of hydraulic system.
● Dimensions of die sets: Page CM , CH , PSU .

Be the first to review this product
Start order request
تشدید كننده هیدرولیک نیوماتیک

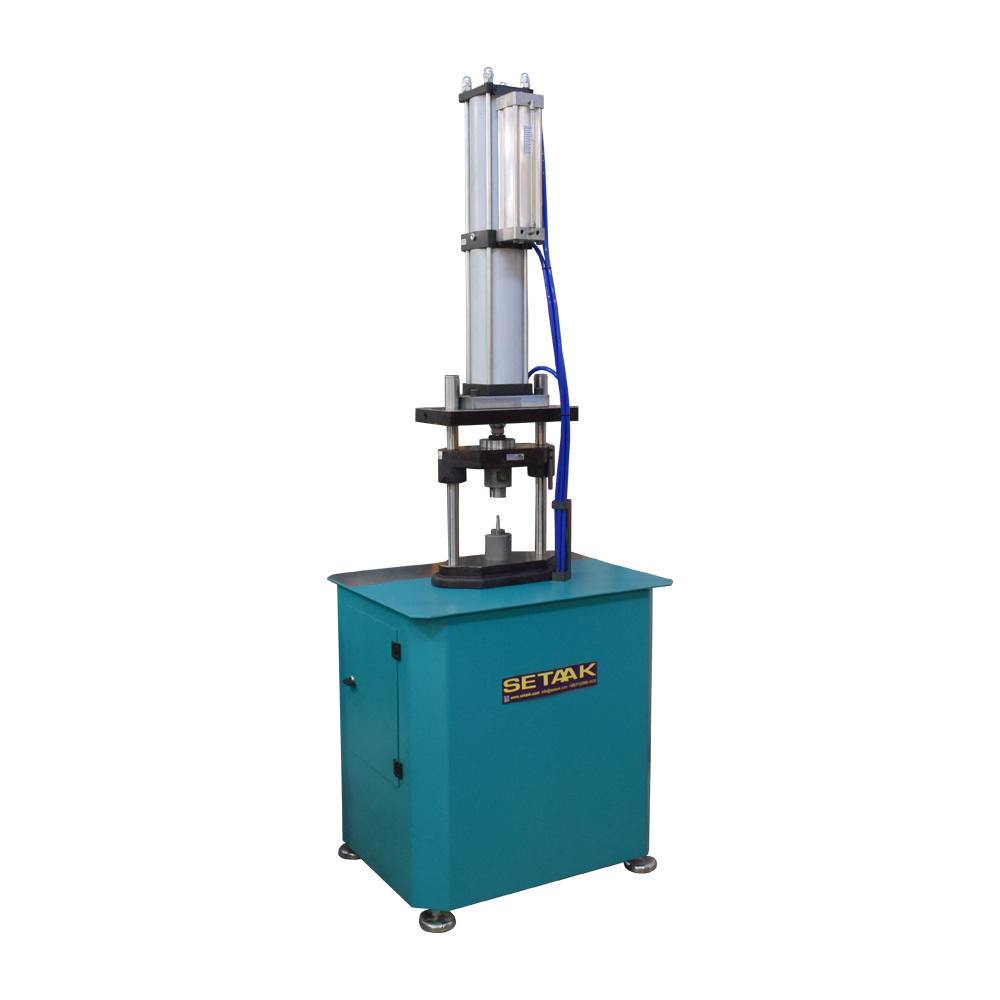

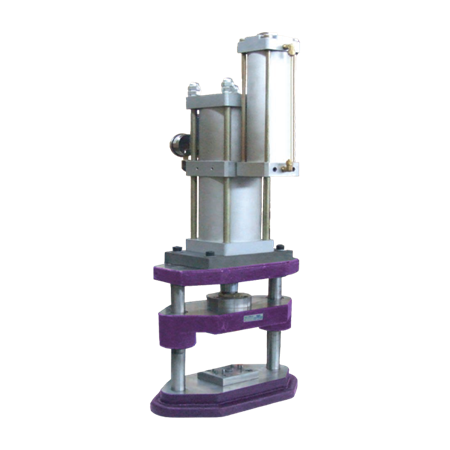

تشدید كننده هیدرولیک نیوماتیک بامیز

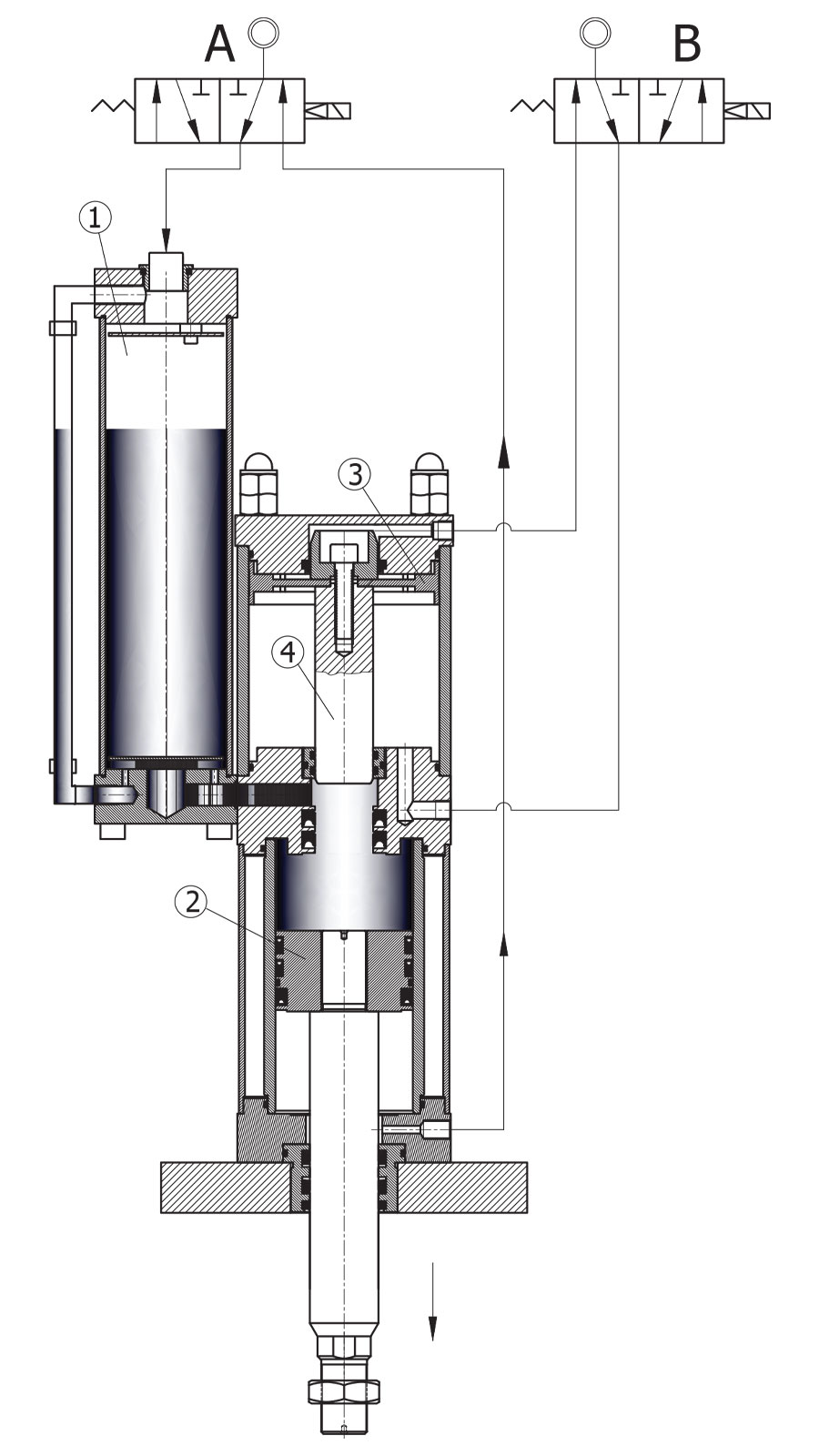

نقشه داخلی تشدید كننده هیدرولیک نیوماتیک

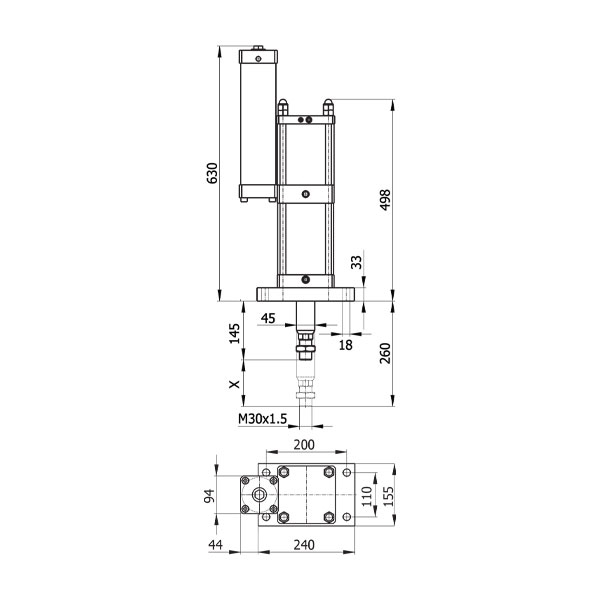

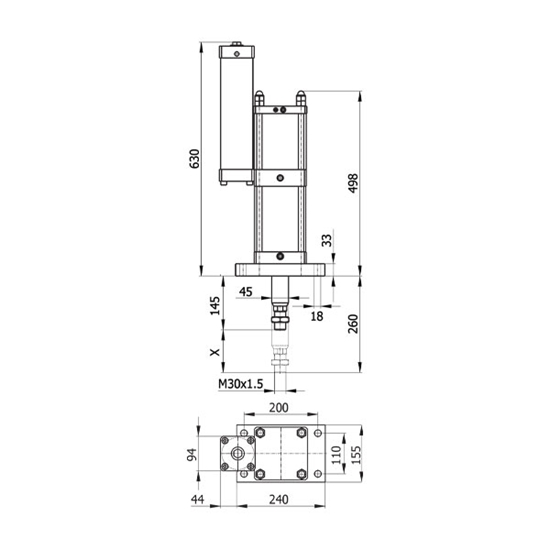

نقشه ابعاد تشدید كننده هیدرولیک نیوماتیک

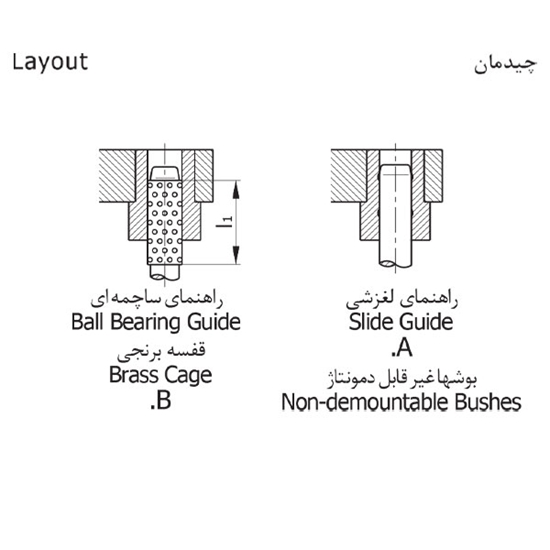

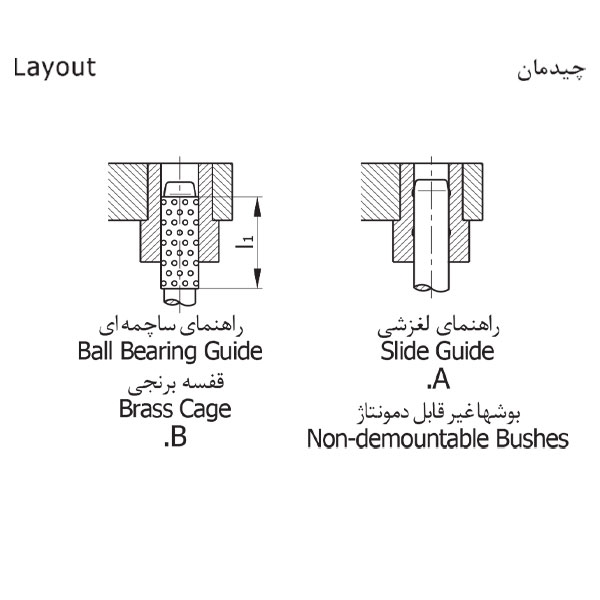

راهنما لغزشی تشدید كننده هیدرولیک نیوماتیک
Loading



Figure explanation:

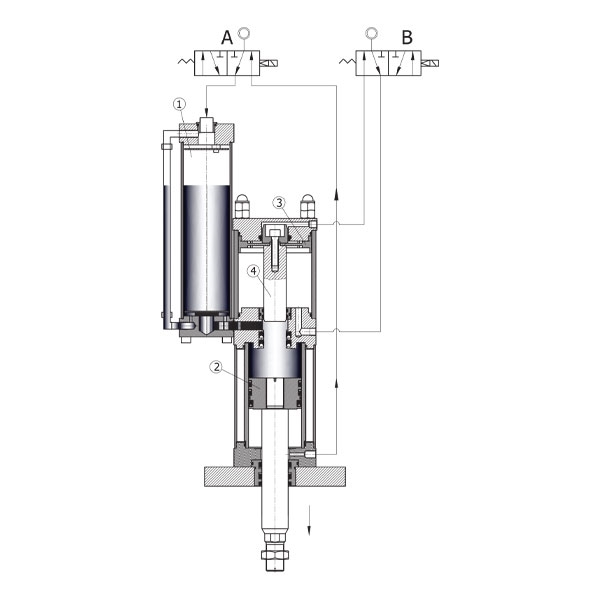

the compressed air enters the chamber number 1 and the cylinder number 2 starts moving by a low force (rapid movement).
After approaching the already-determinated point, the cylinders number 3 and 4 bloc the oil path by compressed air and the cylinder number 4 enters the oil chamber.
Here in case ( the working movement), the force will be multiplied.
