SWING CLAMP MODEL PCR

SWING CLAMP

Product specifications :

● Pneumatic Screwing Body
● Double Action Cylinder
● Strength aluminum body
● Anodised body for corrosion Resistance.
● Hard chrom plated rod.
● Parts of mechanism are made of hardened ateel and coated black.
● Note : Air Unit (filter and lubricant) shall be used (6bar inlet pressure). It is essential to use flow control in way of air inlet & outlet because of avoiding clamp knocking
● Stroke _ In both type of clamping(R&L type),25% of clamp moving is linearly in direction of Y axis and then it turns 90 ° into its position
● Air Consumption _ Air Consumption per cycle.

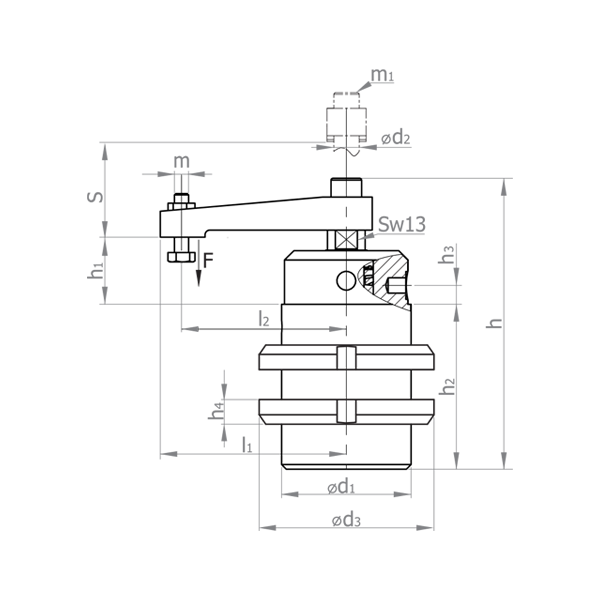

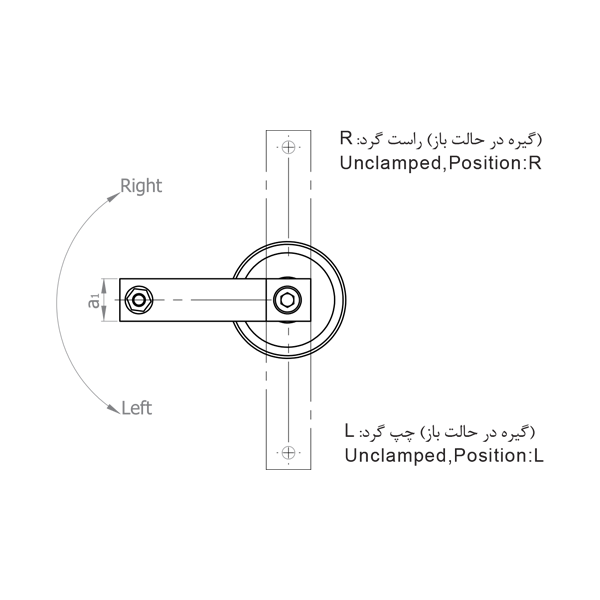

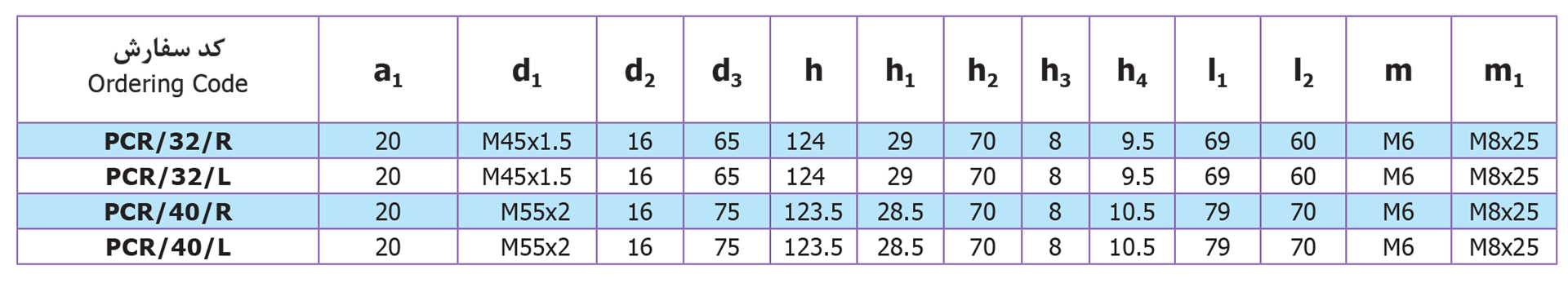

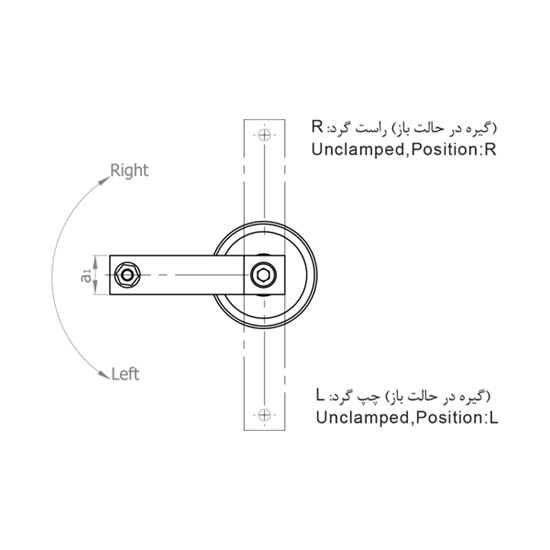

* See top view for selecting the rotate direction.

Be the first to review this product
Start order request

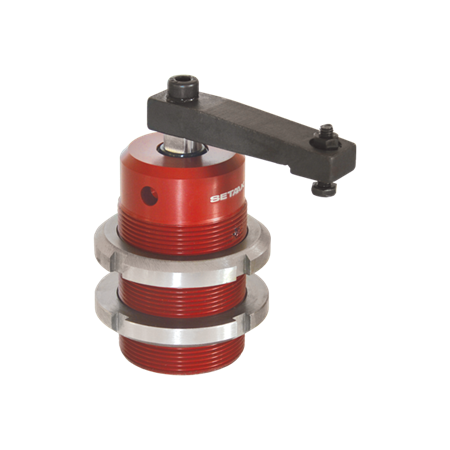

Picture of SWING CLAMP MODEL PCR
Picture of SWING CLAMP MODEL PCR
Loading





Layout:

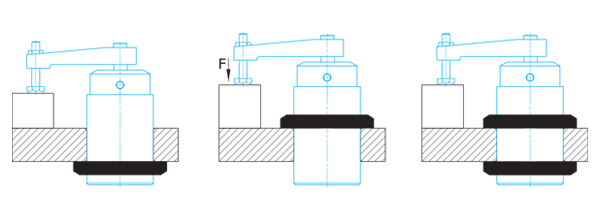

- Mounting with Slotted Round Nut.

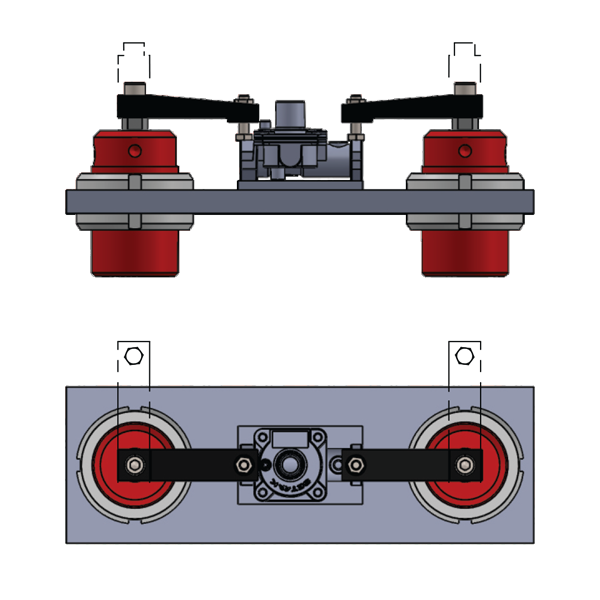

Example:



Point:

Mounting of swing lever

1- Setup swing lever with bolt on the piston rod.

2- Turn swing lever into the position.

3- Fix piston’s rod with wrench and tighten bolt.



Swing lever removal

1- Hold piston’s rod with wrench and loosen the bolt.

2- As the following pictures, seperate swing lever from piston ‘s rod with light hit by the plastic hammer at the bottom of swing lever.

3- Replacing non-standard lever with standard lever leads to seriouse damage to the swing clamp.
